導航標識燈

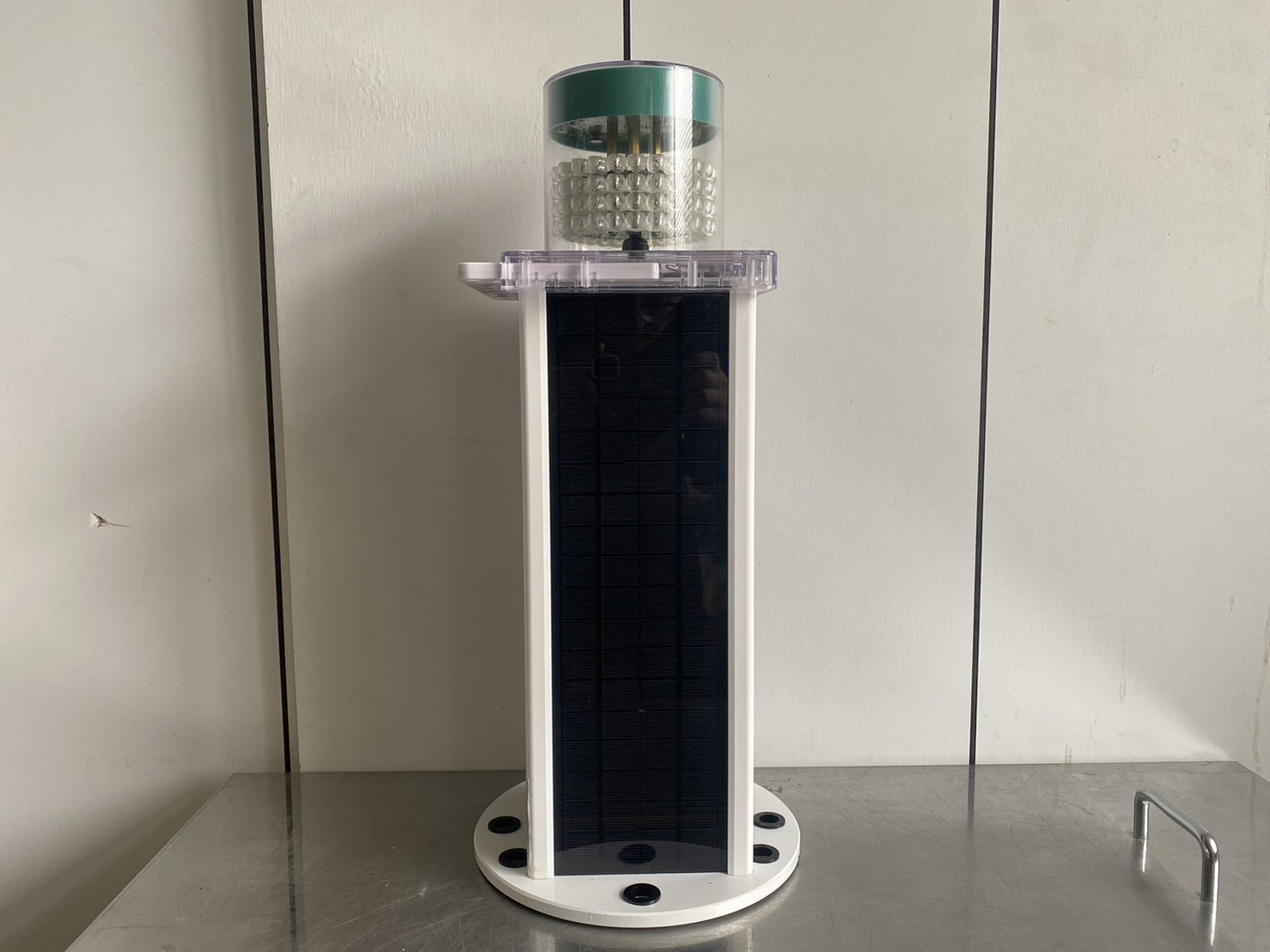

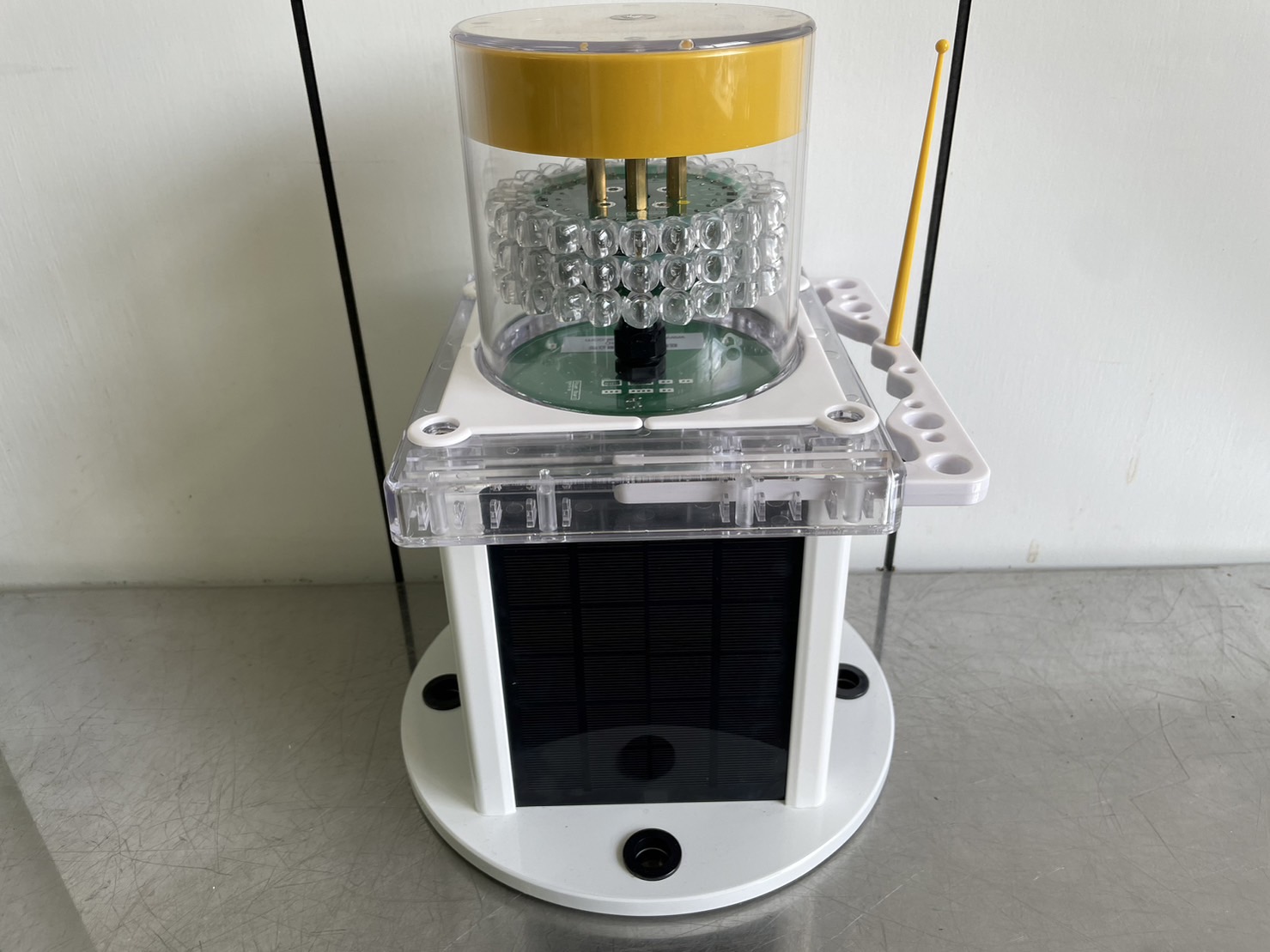

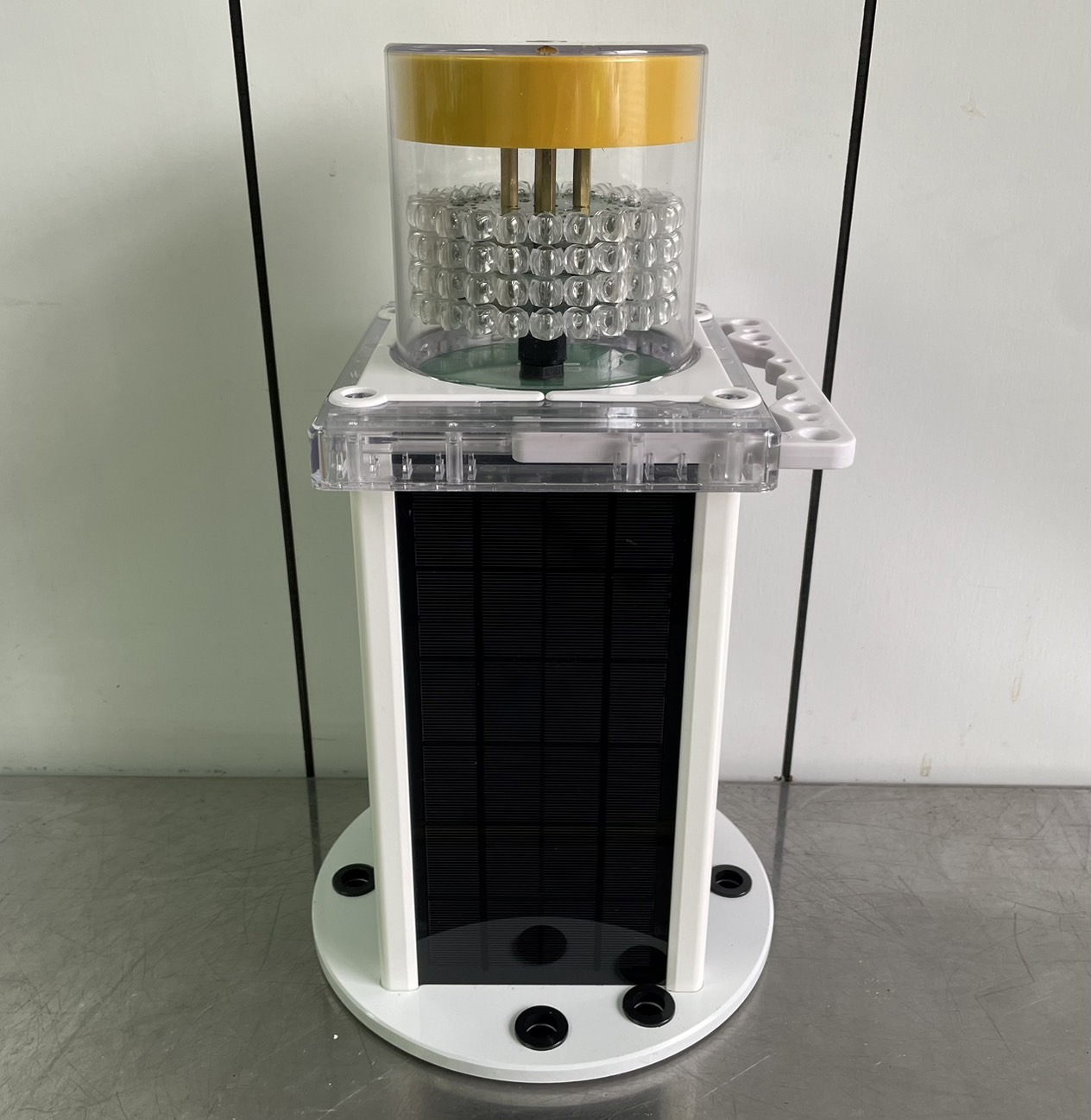

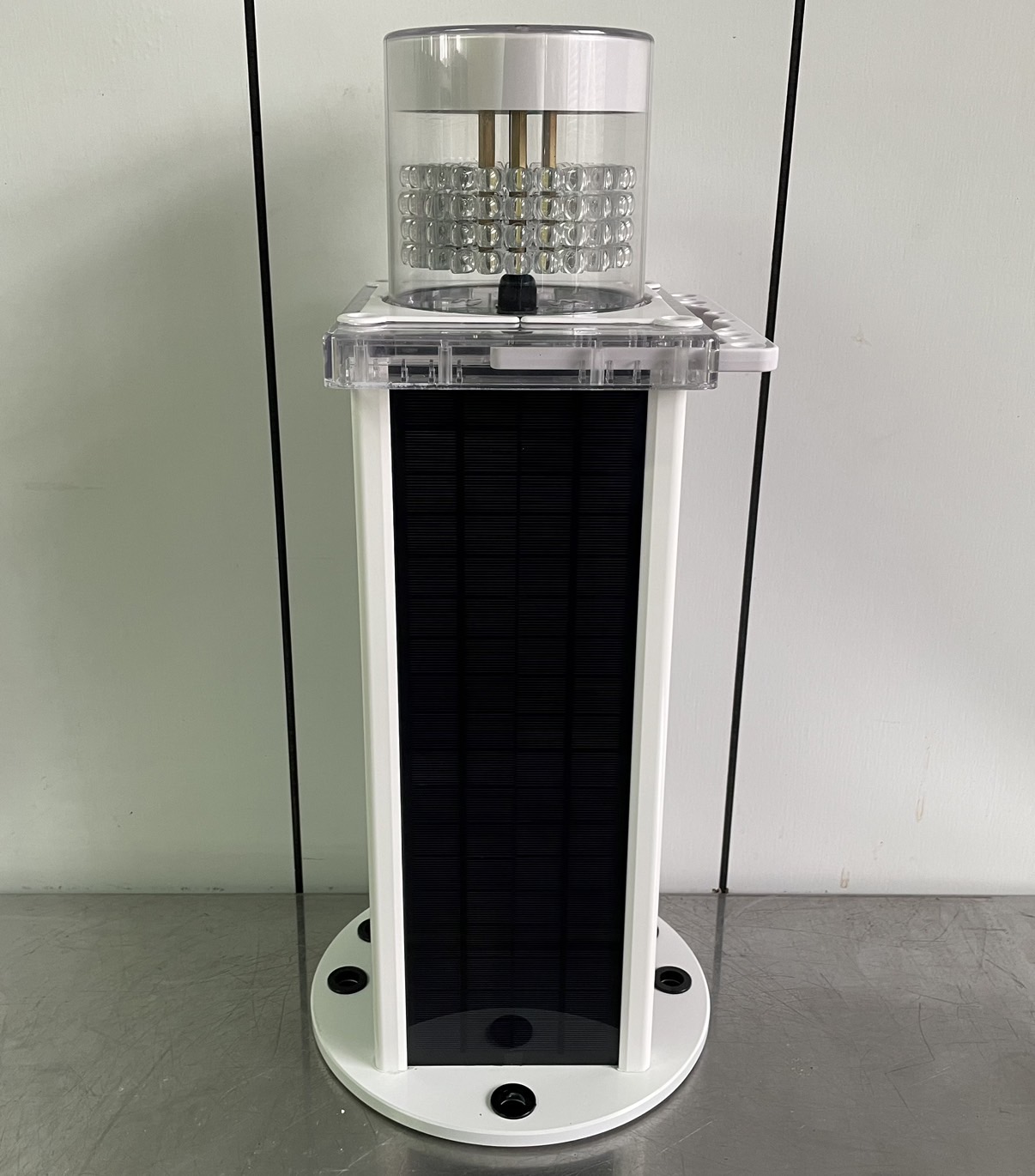

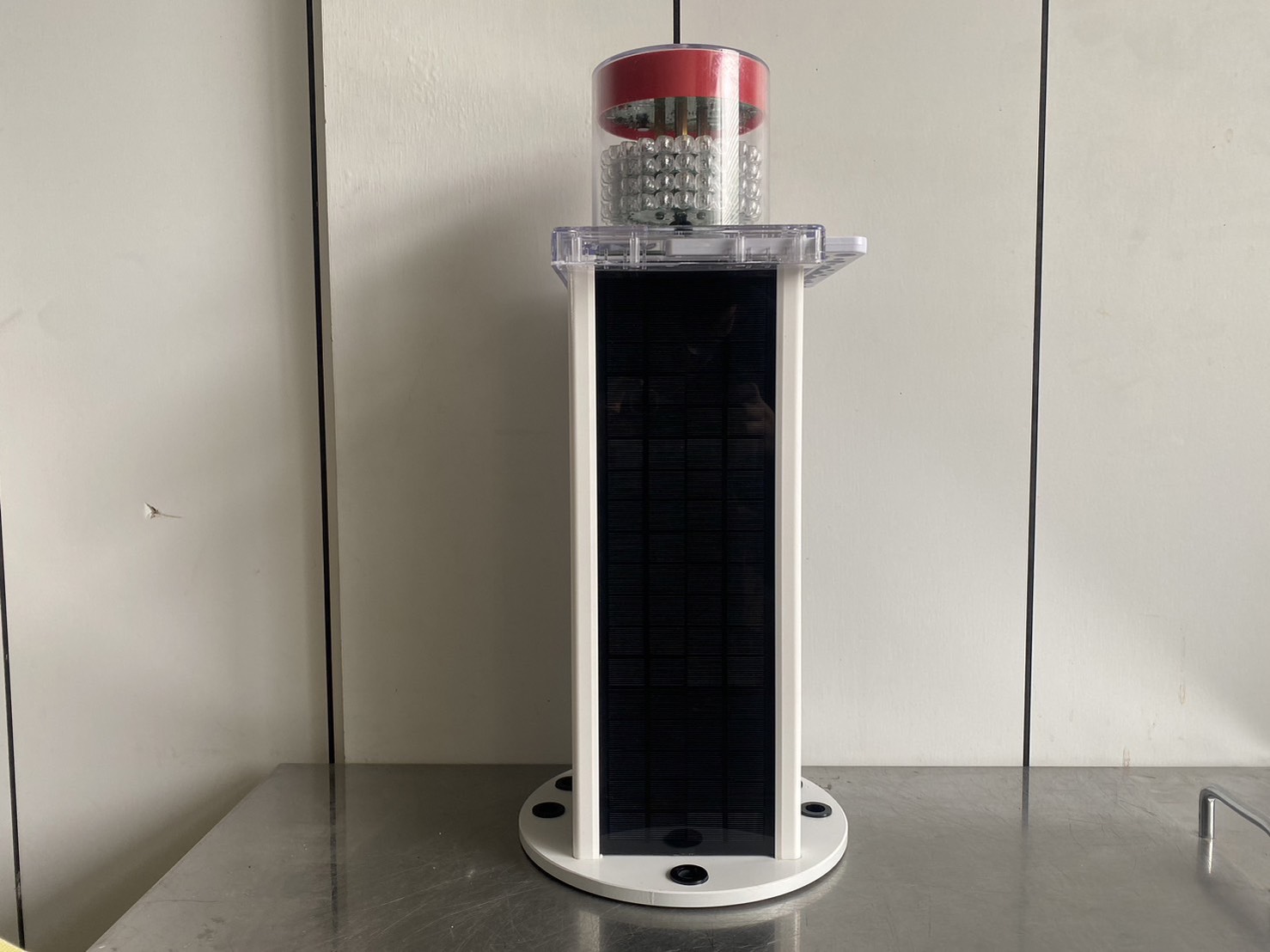

《LED導航標識燈》LCB-S型一體式太陽能導航燈 (黃、紅、綠、白)

LCB-S型

專利:
中華民國 專利號 第 D152776 號
中國專利 專利號 ZL 2012 3 0124907.0
美國專利 專利號 US D668,981 S

太陽能板    :    單晶矽晶片構成
電    池    :    乾式鉛酸電池使用壽命約8年可更換式
日光開關    :    燈具夜晚自動開啟白天自動關閉
工作溫度    :    -40°C ~ +60°C
工作天數    :    4秒1閃0.5秒明時陰雨天工作天數可達7天以上
水平發散角    :    360度
垂直發散角    :    8度
顏    色    :    紅、綠、、白色,符合IALA規定
光達距離    :    T=0.74白6浬、紅、綠、黃4浬
燈罩材質    :    由PC(Polycarbonate)聚碳酸酯構成,經UV防紫外線處理不會龜裂
底座及筒身材質    :    鋁合金構成
LED使用壽命    :    LED使用壽命可達100000小時以上
防水防塵    :    IP68
同步閃光    :    GPS
OLED顯示器    :    可經由紅外線遙控器操作顯示當前燈質、256種燈質選擇、當前電池電壓、
充放電歷史記錄、甲地至乙地GPS導航功能、同步閃光功能開啟關閉

Solar Cell(Power)    :    Mono-crystalline.
Battery    :    Pb Battery 8 Year Replaceable.
Flash Rhythm    :    Fixed.
Characteristic
256 kinds regulations in line with IALA characteristic options can be selected, via the infrared remote control adjustmemt
Daylight Switch    :    Turns On Automatically at Dusk and Off at Dawn.
Environmental Temperature    :    -40°C ~ +60°C
Work days    :    FL 4.0s 0.5. On the rainy days. it could still work almost seven days.(without the solar cell)
Horizontal divergence    :    360°
Vertical Divergence    :    8°
Colours Availabl    :    Red,White,Green
LIDAR distance    :    T=0.74White 8nm Red.Green 6nm
Lamp shades material    :    Made by PC(Polycarbonate). through UV protective treatment to prevent cracking.
Material Construction    :    Aluminum
LED Lifespan    :    LED lifespan reach over 100000 hours
Ingress Protection Rating    :    IP68
Synchronize Flash    :    GPS
Telemetering and remote control    :    GSM(standard equipment)
OLED monitor    :    Via the infrared remote control to operate the following features:
Displays current characteristics,256 characteristics can be selected,
The current battery voltage, Charge and dis charge record, A point to B point GPS
Navigation feature, Sync flash function on and off.

※本網站上所有文字、影片、圖片、價格…等,皆為示範作用, 並不提供購物及推廣該產品使用,且其相關版權皆屬原公司所有。
